Introduction to Wall Bracing
In steel construction, wall bracing—commonly referred to as column bracing—is a fundamental component often overlooked due to its secondary load-bearing nature. However, its contribution to overall structural stability, lateral rigidity, and load path continuity is indispensable. By linking adjacent columns, wall bracing effectively resists horizontal forces and ensures the geometric integrity of the structural frame under dynamic loads such as wind, seismic activity, and crane-induced forces.

The Structural Significance of Wall Bracing
Although columns, beams, and crane girders serve as the primary load-bearing members in steel buildings, the absence of a properly configured bracing system can compromise the entire structural performance. Wall bracing fulfills several critical structural roles:
Snow Load Redistribution: In cold climates, sufficient bracing stiffness helps prevent roof deflection from concentrated snow accumulation.
Enhancement of Lateral Stiffness: By restricting displacement between vertical elements, bracing minimizes lateral deflection and sway.
Transmission of Longitudinal Loads: Wind loads, braking forces from overhead cranes, and seismic actions are transferred through the bracing network to the foundation.
Stabilization During Erection: Wall bracing provides necessary support to partially erected frames, maintaining alignment and preventing premature distortion.
Mitigation of Local Instability: Bracing reduces unrestrained column lengths, thereby enhancing stability against out-of-plane buckling.
Layout Strategies and Placement Guidelines
Bracing Zones and Sequencing
Wall bracing is typically installed longitudinally, aligned with the building’s primary axis. For large-scale or thermally segmented buildings, each temperature zone or construction phase should be equipped with an independent bracing system to ensure localized stability.
Placement Recommendations
For industrial buildings with cranes, the spacing may be increased to 60 meters, depending on structural height and use.
First-Bay Priority: Whenever feasible, bracing should be installed in the first bay at both ends of the structure. If spatial constraints prevent this, the second bay may be used, provided supplemental rigid members are added to maintain load path efficiency.
Avoidance of Functional Conflicts: Bracing should be located to avoid interference with doors, windows, or equipment access points. Alternative configurations—such as portal or truss-type bracing—should be adopted in constrained zones.
Bay Spacing:
For lightweight structures without cranes, the distance between bracing bays should not exceed 45 meters.
For industrial buildings with cranes, the spacing may be increased to 60 meters, depending on structural height and use.
Common Bracing Configurations

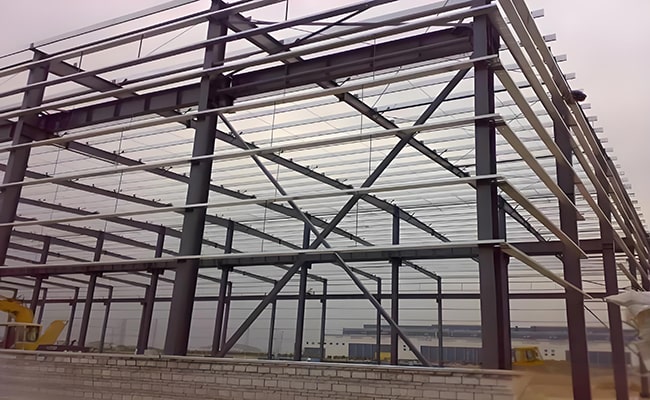

1. Diagonal X-Bracing
This is the most widely applied configuration, consisting of two diagonals crossing between adjacent columns. It provides a high degree of stiffness and is suitable for both tension and compression loads.
2. V-Bracing and K-Bracing
These alternatives are employed in cases where X-bracing is not feasible due to spatial or architectural constraints. While slightly less rigid, they can be engineered to meet structural requirements when appropriately designed.
3. Portal Bracing
In buildings requiring unobstructed interior spans, portal bracing—comprising rigid connections between columns and horizontal members—offers a viable solution. It redistributes loads through frame action rather than discrete bracing elements.
4. Two-Tier Bracing Systems
For tall structures or those incorporating crane systems, wall bracing is typically divided into two layers:
- Lower-tier bracing beneath the crane beam.
- Upper-tier bracing above the crane level.
This separation ensures targeted stability across all vertical zones of the structure.
Material Selection and Geometric Considerations
Material choice for wall bracing is dictated by factors such as structural height, required stiffness, fabrication ease, and visual coherence.
- Round Steel with Tensioners: Ideal for light-duty applications. Tensioning devices are essential to maintain force engagement and limit slack.
- Angle Steel or Steel Pipe: Preferred in taller or crane-bearing buildings for their increased rigidity and favorable load distribution properties. Steel pipes are particularly valued for their material efficiency, clean aesthetic, and ease of manufacturing.
Installation Angle: Diagonal members should typically form angles between 30° and 60° with the vertical axis to ensure effective force transfer and stiffness optimization.
Connection Detailing and Node Integrity
Proper connection detailing is vital to avoid eccentricities and stress concentrations:
- Bracing ends should intersect with the centerline of the columns at both the top and bottom.
- Tie beams or horizontal struts used in conjunction with bracing should likewise align with the column centroid.
- Where the column base plate sits above ground level, a reinforced concrete beam may be used beneath the floor slab to anchor the bracing and prevent force misalignment.
All connections must be verified for both tensile and compressive force transfer and should be designed according to relevant structural codes and detailing standards.
Design Best Practices
- Uniformity of Type: A single bracing type should be used throughout the building whenever possible. If multiple types are necessary, their relative stiffness must be analyzed and balanced to avoid stress irregularities.
- Compatibility with Openings: Functional areas like dock doors and windows may necessitate custom bracing configurations. In such cases, structural analysis should confirm that performance targets are still met.
- Load Path Clarity: Ensure that every load originating from the roof, purlins, or wall girts has a clearly defined and uninterrupted transmission path to the foundation.
Conclusion
Wall bracing is not merely a secondary structural feature—it is a central mechanism for maintaining lateral stability, especially under dynamic and multi-directional loading conditions. Through thoughtful layout, appropriate configuration, and meticulous detailing, wall bracing reinforces the resilience and safety of steel buildings. As structural systems grow more complex and performance demands rise, the precision with which bracing is integrated becomes ever more critical.
Frequently Asked Questions
Is wall bracing required in all steel buildings?
Yes. Regardless of building scale or function, bracing is fundamental for resisting horizontal loads and ensuring frame stability.
How do I determine the spacing of wall bracing bays?
Spacing is based on the building’s function and load conditions. For light steel structures, 45 meters is typically the maximum; for crane-bearing buildings, up to 60 meters may be acceptable.
Can wall bracing be adapted for doors or windows?
Absolutely. When bracing conflicts with functional openings, portal or truss bracing can be used to maintain performance without sacrificing utility.
What are the preferred materials for wall bracing?
Round steel with tensioners is used in smaller buildings, while angle steel or steel pipes are suitable for structures requiring higher stiffness.
What are the consequences of improper bracing installation?
Inadequate or poorly detailed bracing can result in lateral instability, misalignment during erection, or even structural failure under wind or seismic loads.
