Steel truss structures represent a fundamental form of structural design characterized by their efficient geometry and material economy. Constructed from interconnected steel members arranged in triangular configurations, these systems achieve remarkable strength while maintaining a relatively low weight. Their ability to span vast distances without intermediate supports makes them especially suitable for applications such as bridges, industrial warehouses, sports arenas, and large-scale roofing systems.

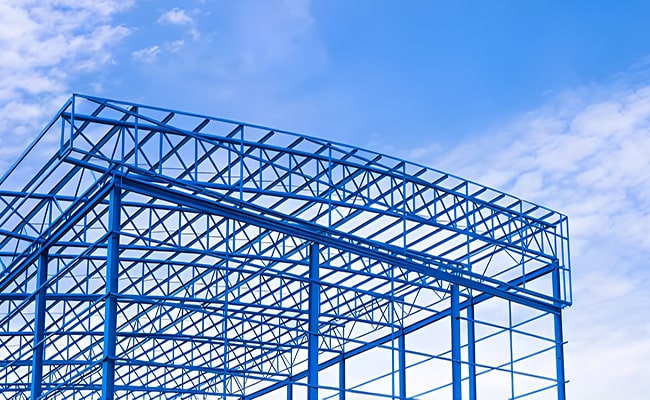

steel truss structure

1. Definition of Steel Truss Structure: What is a truss?

1.1 Introduction to Steel Truss Structures

Steel truss structures are engineered assemblies of interconnected straight steel elements, typically organized in triangular configurations to ensure optimal stability and load distribution. The geometric rationale—rooted in the inherent rigidity of triangles—allows these systems to effectively transfer loads to their supports. The concept gained prominence during the Industrial Revolution as steel began supplanting timber and wrought iron in large-scale construction. Bridges, train sheds, and early factories embraced trussed systems for their unparalleled strength-to-weight ratios. Over time, trusses evolved from rudimentary frameworks into sophisticated components of contemporary architectural and infrastructural design.

1.2 Significance in Contemporary Engineering Practice

Steel trusses are indispensable for solving spatial and load-bearing challenges in structural engineering. Their capacity to span considerable distances without intermediary support enhances structural efficiency and facilitates innovative architectural expressions. They are integral to projects requiring rapid assembly, high load tolerance, and material efficiency. Whether employed in vast roof systems or transport infrastructure, steel trusses continue redefining structural possibility boundaries.

2. Typologies of Steel Truss Systems

2.1 Pratt Truss

The Pratt truss is distinguished by its diagonals sloping toward the center of the span under tension and verticals under compression. This efficient tension-compression interplay makes it particularly effective for gravity-dominated loads. Its repetitive geometry supports economical material usage and streamlined fabrication, making it a mainstay in bridge construction and floor support systems.

Pratt Truss

2.2 Warren Truss

Comprised of a series of equilateral or isosceles triangles, the Warren truss distributes static and dynamic loads uniformly. Its minimalist configuration—with fewer vertical elements—reduces internal force concentrations, making it suitable for structures requiring balanced force transmission. Frequently found in long-span bridges and industrial roofs, this truss exemplifies the marriage of structural clarity and performance.

Warren Truss

2.3 Howe Truss

The Howe truss inverts the structural roles observed in the Pratt variant: diagonal members resist compression, while verticals bear tension. This reversal makes it adept at accommodating distributed roof and floor loads, particularly in timber or hybrid construction scenarios. The Howe configuration remains relevant in steel applications for short- to mid-span systems demanding symmetrical load behavior.

Howe Truss

2.4 Fink and Fan Trusses

The Fink truss utilizes a fan-like arrangement of multiple triangulated segments to enhance load capacity across wide roof spans. Its efficiency in material distribution makes it a preferred choice in residential and industrial roofing. The Fan truss, a derivative configuration, radiates diagonals from a central node, optimizing load paths while allowing greater adaptability to complex roof geometries.

Fink Truss

3. Performance Advantages of Steel Truss Structures

3.1 Optimized Load Distribution and Structural Efficiency

A primary virtue of steel trusses is their ability to translate distributed loads into axial forces along the members, minimizing bending and shear stresses. This design strategy significantly reduces structural weight while maintaining superior load-bearing capacity. The resulting efficiency enables lighter foundations, enhances seismic resilience, and supports long-span applications with reduced material consumption.

3.2 Architectural Flexibility and Spanning Potential

Steel trusses empower architects and engineers with spatial freedom unmatched by traditional framing systems. Their capacity to span over 100 meters without intermediate supports opens new possibilities in large-scale enclosures such as auditoriums, hangars, and exhibition halls. Moreover, the structural openness accommodates complex mechanical systems, integrated lighting, and adaptable interior layouts.

3.3 Material Efficiency and Prefabrication Compatibility

Truss geometry’s modular and repetitive nature lends itself to prefabrication, reducing on-site labor demands and construction timelines. Steel’s recyclability and dimensional consistency further enhance the sustainability profile of trussed structures. This synergy between material performance and fabrication logistics is advantageous in fast-paced, resource-conscious construction environments.

steel truss structures

4. The Applications of Steel Truss Structures

4.1 Industrial Warehouses and Aviation Hangars

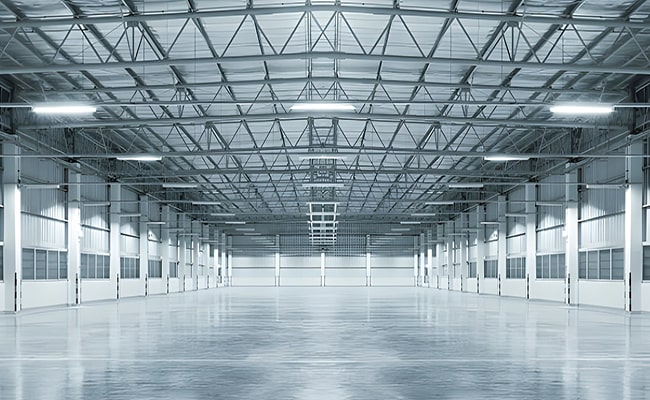

Steel trusses provide an ideal solution in spaces where column-free interiors and clear vertical volumes are essential. Their lightweight yet robust framework enables the integration of cranes, mechanical ducts, and overhead utilities without compromising structural integrity. Trusses deliver exceptional value for aviation and logistics where spatial flexibility is paramount.

4.2 Sports Facilities and Long-Span Roofs

Modern stadiums and arenas demand structural systems that support vast roof expanses and complement architectural ambition. Steel trusses—particularly those with curved or retractable configurations—fulfill these requirements with finesse. Their minimal visual mass and capacity for dynamic loading conditions make them the backbone of high-performance, large-span architecture.

4.3 Bridges and Transport Infrastructure

steel truss section

In the realm of bridges, steel trusses offer time-tested durability and adaptability. Their geometry is well-suited for resisting fluctuating vehicular loads, wind forces, and thermal movements. The prefabricated nature of truss components allows for rapid assembly over active roadways and waterways, reducing construction impact on urban and ecological environments.

Construction Process of Steel Truss Structures

The construction of steel truss structures involves a series of carefully coordinated steps designed to ensure structural integrity, efficiency, and long-term performance. Each phase, from conceptual planning to final inspection, integrates engineering precision with practical execution.

1. Conceptual Design and Structural Analysis


The process begins with thoroughly assessing the building’s functional requirements and span constraints. An appropriate truss configuration—such as planar or spatial trusses—is selected based on these parameters. This is followed by a detailed structural analysis to evaluate the proposed system’s feasibility, load-bearing performance, and cost-efficiency.

2. Preparation of Construction Drawings and Material Selection


Comprehensive construction drawings are developed, outlining the specifications for member dimensions, connection details, and erection sequences. Concurrently, steel materials are selected following structural demands—typically grades like Q235 or Q355—and appropriate cross-sectional profiles are chosen to optimize strength and material economy.

3. Component Fabrication


Truss members are prefabricated under controlled factory conditions to ensure high precision. This includes cutting, welding, drilling, and applying anti-corrosion coatings. Each component is marked and often pre-assembled to verify dimensional accuracy and fit-up quality before site delivery.

4. Transportation and On-Site Storage


Once fabricated, components are systematically transported to the construction site. Special attention is given to secure storage practices to prevent mechanical damage or deformation, thus facilitating efficient site assembly operations.

5. On-Site Installation and Assembly


Installation typically employs cranes or other lifting equipment to erect the truss in a predetermined sequence—either center-outward or from one end across. Connections are secured using high-strength bolts or in-situ welding, depending on the design and load requirements.

6. Alignment and Structural Adjustment


During assembly, precise alignment is maintained through verticality and levelness checks. Particular focus is placed on joint zones, where reinforcements may be applied to ensure overall stability and to accommodate structural tolerances.

7. Protective Coating Application


Upon completion of the structural framework, protective treatments are applied to exposed joints and welds. Fire-resistant coatings are also used where required, enhancing the system’s durability and compliance with fire safety standards.

8. Final Inspection and Project Handover


The project concludes with a rigorous inspection phase, comparing on-site execution with technical drawings and applicable standards. Evaluation criteria include dimensional tolerances, weld quality, and the integrity of protective finishes. Following approval, the structure is formally handed over for operational use.

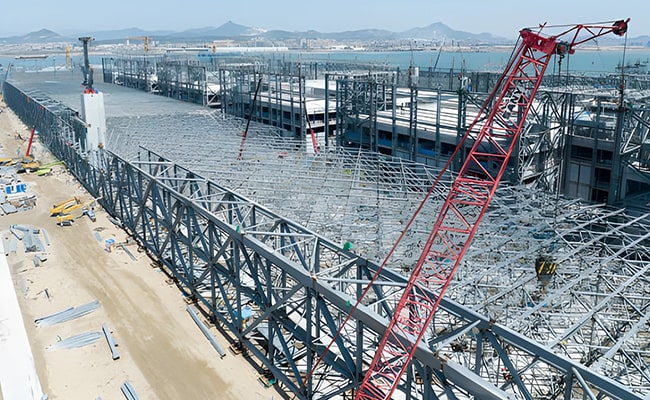

Steel truss installation

FAQs About Steel Truss Structures

1. How does a steel truss differ from a steel frame?
While both are skeletal systems, a steel frame uses vertical columns and horizontal beams in a rectilinear configuration. In contrast, a truss employs triangulated members that optimize load transfer, often making it more efficient for large spans and lightweight applications.

2. What distinguishes a steel truss from a steel rafter?
A steel rafter is a singular beam element supporting roof loads, typically used in smaller spans. A steel truss, by comparison, is a composite structure made of interconnected components, offering greater strength and spanning capability due to its triangulated design.

3. Why choose steel trusses over other systems?
Steel trusses offer long-span capability, efficient material use, rapid prefabrication, and compatibility with complex architectural geometries. They also allow for more straightforward utility incorporation and reduce dead loads.

4. Which steel truss type is the strongest?
“Strongest” depends on the context—longest span, heaviest load, or stability under dynamic forces. Custom hybrid trusses or space frame variations often outperform traditional configurations when engineered for specific scenarios.

5. What is the principle behind steel trusses?
Steel trusses function by converting applied loads into axial forces—tension or compression—within their members. This minimizes bending and results in an efficient, lightweight structure that can sustain heavy and distributed loads.

6. What are the typical span limits for steel roof trusses?
Standard steel trusses can span from 20 meters to 100+ meters. With specialized engineering and material selection, exceptional designs can exceed this range, especially for stadiums or airport terminals.

7. Why are trusses considered stronger than beams?
Trusses outperform solid beams in many large-span applications because they distribute loads through multiple members, reducing internal stresses. This makes them lighter yet structurally efficient, particularly for wide-span roofs and bridges.

8. What determines the spacing of steel trusses?
Truss spacing depends on roof loads, decking systems, and overall structural configuration. While common spacing ranges from 3 to 10 meters, specific project requirements and load conditions ultimately guide spacing decisions.

Conclusion

Steel truss structures represent a confluence of engineering precision and architectural ambition. Their unmatched ability to span vast spaces, endure variable loading, and integrate seamlessly with modern construction methods ensures their continued relevance. In both utilitarian and visionary projects, steel trusses offer a resilient framework that bridges the practical and the aspirational in structural design.
