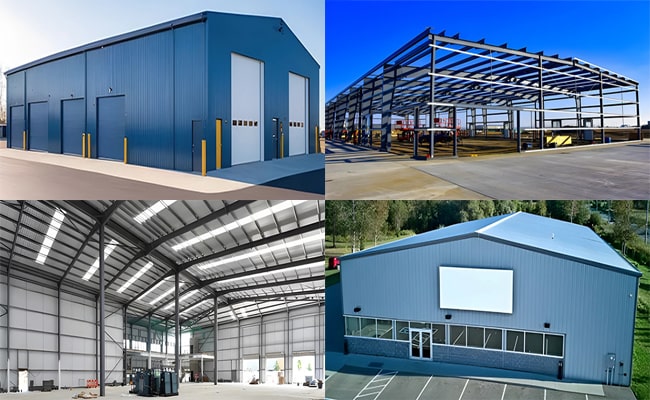

What is a Steel Structure Warehouse Building

A steel structure warehouse building is an engineered facility constructed using prefabricated steel components—most notably H-section or box-section columns and beams. These structural systems are specifically designed to bear significant loads while maintaining open interior spaces free from intermediate columns. This unobstructed layout is critical in operations that demand spatial flexibility and efficiency.

The main structural framework typically consists of hot-rolled or welded steel beams, supported by secondary elements such as purlins, girts, and a system of diagonal bracing. Together, these components form a stable configuration capable of resisting environmental forces, including seismic activity, high winds, and snow loads.

Such designs are particularly well-suited to applications that require high internal clearances and uninterrupted floor areas, and they can be readily modified or extended as operational needs evolve.

What are the benefits of a Steel Warehouse Building?

Steel warehouse Buildings offer a wide range of benefits that make them the preferred choice for many industries:

• Fast construction – Prefabricated components allow for quick assembly on-site.
• Cost-effective – Lower labor and material costs compared to concrete buildings.
• Large clear spans – Create unobstructed space for equipment and storage.
• Durability – Excellent resistance to corrosion, fire, earthquakes, and wind loads.
• Low maintenance – Minimal upkeep is required over time.
• Flexibility – Easily expandable, relocatable, or customizable.

Steel Structure Warehouse vs Concrete Warehouse

Feature	Steel Structure Warehouse	Concrete Warehouse
Construction Speed	Fast (in weeks)	Slow (often several months)
Initial Cost	Lower overall cost	Higher material + labor cost
Span Width	Up to 60 m+ clear span	Limited without columns
Flexibility	Modular, easy to expand	Difficult to modify
Eco-friendliness	Recyclable materials used	Higher CO₂ footprint
Foundation Needs	Lighter foundation required	Heavy foundation necessary

Read More: The Installation Process of Steel Structure Warehouse

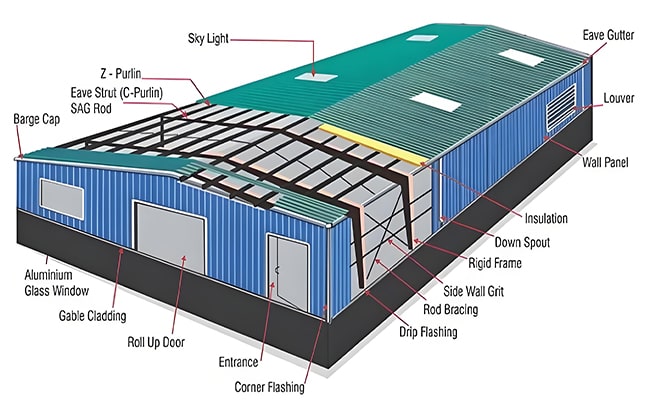

Core Structural Components of Steel Warehouse Buildings

Understanding the basic elements that constitute a steel warehouse building is essential to informed decision-making during the planning and design phases:

• Main Frame: The primary load-bearing system, typically composed of steel columns and beams arranged in portal or rigid frames.
• Purlins and Girts: Horizontal members (commonly in C or Z sections) that provide support for roofing and wall systems.
• Bracing Systems: Diagonal bracing enhances lateral stability and distributes seismic and wind loads efficiently.
• Roof and Wall Cladding: Depending on insulation and environmental requirements, single-skin steel sheets or insulated sandwich panels are used.
• Doors and Windows: Functional openings such as industrial roll-up doors, fire exits, and aluminum-framed windows ensure accessibility, ventilation, and compliance with safety standards.
• Crane Beams (if applicable): For industrial applications, crane girders may be integrated to support overhead lifting equipment.

Customization Options in Design

Steel structure warehouses offer extensive flexibility in architectural and functional customization, allowing alignment with both operational demands and regulatory frameworks:

• Width and Span Configuration: Based on machinery layout or storage requirements, warehouses can be designed as single-span or multi-span facilities.
• Building Height: While standard eave heights range from 6 to 12 meters, these can be modified to support high-bay storage systems or vertical automation.
• Mezzanines: Intermediate floors can be introduced to accommodate office spaces, inspection platforms, or secondary storage.
• Lighting and Ventilation: Skylights, ridge ventilators, and wall-mounted louvers enhance natural light and airflow, reducing energy consumption and improving working conditions.

Site Planning and Preliminary Considerations

A successful warehouse project hinges not only on structural design but also on comprehensive site analysis and logistical planning:

• Soil Conditions and Foundation Design: Geotechnical assessments guide the selection of appropriate foundation systems—ranging from pad footings to deep pile foundations—based on load-bearing capacity and soil stability.
• Climatic and Environmental Factors: Regional climate characteristics, such as snow accumulation, prevailing wind directions, humidity levels, and temperature extremes, influence both structural detailing and material selection.
• Functional Layout: The internal arrangement should reflect workflow requirements, whether for palletized goods, cold storage, or automated production lines.
• Regulatory Compliance: Adherence to local building codes, fire safety regulations, and seismic standards is essential for securing permits and ensuring long-term operational safety.

Read more: Steel Structure Warehouse Design

FAQS about Steel Structure Warehouse

Q: What is the typical construction timeframe for a steel warehouse?
A: Most steel warehouses can be completed within 30 to 60 days, thanks to the use of prefabricated components and streamlined on-site assembly.

Q: Is future expansion feasible with steel warehouse designs?
A: Absolutely. The modular nature of steel structures allows for seamless extensions and modifications without significant structural overhaul.

Q: What types of insulation are commonly used?
A: Polyurethane, rock wool, and glass wool sandwich panels are widely adopted for their excellent thermal and acoustic performance.

Q: Can steel warehouses accommodate automation systems?
A: Yes. The spacious, column-free interior and high load-bearing capacity make them ideal for robotic equipment, conveyor belts, and automated racking systems.
