The Introduction to Antigua Steel Warehouse
The Antigua Steel Warehouse, designed by Havit Steel Structure, reflects a deliberate response to one of the Caribbean’s most persistent environmental challenges—typhoons. Situated in a region prone to Category 4 and 5 storms, the project demanded more than a typical prefabricated solution. Our client, operating in a high-risk coastal zone, required a structure that could reliably withstand powerful wind forces, flying debris, and heavy precipitation—without compromising operational efficiency or cost control.
In close collaboration with the client, our team delivered a fully customized, typhoon-resistant steel warehouse, engineered to endure the region’s most severe climatic threats while ensuring rapid assembly, long-term stability, and low maintenance demands.
Project Overview: Tailored to Antigua’s Environmental Realities
From the outset, this project was shaped by local conditions. The client’s specification was clear: a durable steel warehouse capable of performing under extreme wind pressure. Drawing on our expertise in steel building systems for disaster-prone regions, we proposed a solution based on the portal frame system, fine-tuned for hurricane exposure.
Every component was precision-fabricated in our China facility, with transport logistics carefully managed for overseas delivery. Local assembly was supported through comprehensive engineering drawings, a detailed parts list, and remote technical guidance. The structure complies with regional Caribbean wind load codes, ensuring that both performance and regulatory standards were met.

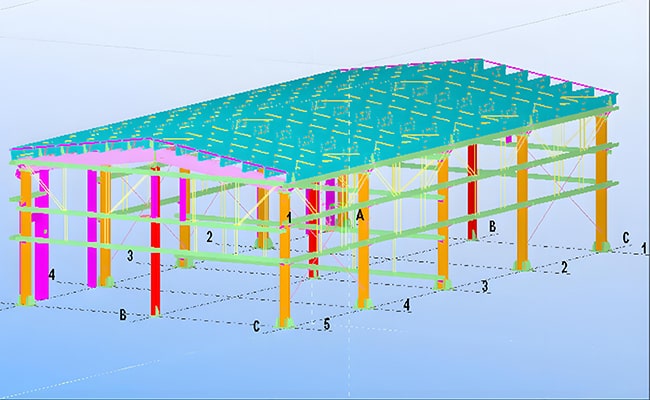

Antigua Steel Warehouse – Structural Design Summary
| Parameter | Specification |
|---|---|
| Project Location | Antigua, Caribbean |
| Building Type | Prefabricated Steel Warehouse |
| Building Dimensions | 30m (length) × 18m (width) × 6m (eave height) |
| Roof Slope | 10 degrees |
| Main Frame | Welded H-section steel, Q355 |
| Roof/Wall Cladding | Galvanized corrugated steel panels |
| Wind Load Resistance | ≥ 250 km/h (equivalent to Category 5) |
| Anchor Bolts | M24, deep-embedded in C30 concrete |
| Bracing System | X-type diagonal steel rod bracing |
| Design Code Reference | GB 50009 |
Design Considerations: Structural Measures for Typhoon Resistance
To deliver a building suited to Antigua’s environment, several targeted design strategies were implemented:
1. Resilience Against Wind Loads Above 250 km/h
The warehouse was engineered to endure wind speeds reaching 280 km/h, exceeding Category 5 hurricane thresholds. Wind load analysis accounted for building orientation, elevation, and surrounding terrain, ensuring that structural forces were accurately modeled and addressed.
2. Reinforced Portal Steel Frame System
The warehouse’s structural integrity rests on a H-section steel frame, supported by strategically placed bracing to resist lateral forces. The geometry and rigidity of the portal frame were optimized to prevent deformation and ensure stability during high wind events.
3. Foundation Anchorage and Uplift Resistance
Foundation design plays a crucial role in storm resilience. To mitigate uplift risks, we used deep-embedded M24 anchor bolts and rigid column foots, integrated into a reinforced C30-grade concrete base. This anchoring system ties the steel frame securely to the foundation, minimizing the risk of displacement.
4. Cladding Systems for Wind and Water Tightness
Antigua Steel Warehouse envelope features galvanized high-rib steel panels, installed with wind-resistant fasteners and waterproof gaskets. These claddings were selected not only for their corrosion resistance but also for their ability to shed water and withstand suction forces during storms.
5. Bracing and Torsional Rigidity Enhancements
X-type diagonal bracing was installed across bays to enhance structural continuity, while hot-dip galvanized Z-purlins provided extra torsional strength along the roof and wall systems. Together, these elements reduce vulnerability to racking and torsion under dynamic loads.
Read more: Steel Structure Warehouse Design
Key Advantages of the Antigua Steel Warehouse
Climate-resilient Construction
By integrating structural reinforcements and precise wind load calculations, the building is better equipped to endure Antigua’s seasonal typhoons—unlike conventional concrete or timber warehouses, which often fail under similar conditions.
Efficient Logistics and Assembly
All components were pre-engineered, pre-drilled, and clearly labeled, allowing for efficient site installation. The modular assembly approach significantly reduced on-site labor time and construction risk.
Durability and Lifecycle Value
Antigua Steel Warehouse uses marine-grade, corrosion-resistant materials suited to coastal environments. Minimal maintenance is expected over its lifespan, even under high humidity and salt exposure.
Adaptable Design
From internal layout to roofing systems, the structure was designed for future adaptability. It can accommodate insulation upgrades, mezzanine additions, or crane systems based on evolving operational needs.
Sustainability and Environmental Stewardship
Antigua Steel Warehouse was not only built for strength but also with sustainability in mind. Steel is fully recyclable, and insulation options were incorporated to reduce thermal transfer and improve energy efficiency. The modular system also supports potential disassembly and reuse, minimizing environmental impact.
Global Expertise, Local Delivery
With a proven track record in international steel structure projects, Havit Steel Structure offers complete export solutions. For the Antigua Steel Warehouse project, we managed:
- Tailored structural design based on local wind speed
- Detailed 3D fabrication drawings and installation manuals
- Containerized export packing and shipping coordination
- Remote support during local installation phases
Conclusion: Strength Where It Matters Most
The Antigua Steel Warehouse stands as a testament to what thoughtful design and precision engineering can achieve in a storm-prone region. It balances robustness with versatility, enabling our client to operate with confidence—even in the face of unpredictable weather.
For businesses across the Caribbean and other high-wind regions, this project demonstrates the tangible value of investing in a steel structure that is purpose-built for the climate it inhabits.
Frequently Asked Questions
Q1: What sets this warehouse apart for hurricane-prone locations?
It was designed specifically for high wind zones, with resistance exceeding 250 km/h. Every element—from the reinforced frames to the foundation anchorage—was selected to meet or exceed international hurricane design standards.
Q2: How long did it take from fabrication to installation?
Fabrication was completed in 5 weeks. Shipping and customs clearance to Antigua took an additional 3 weeks. On-site assembly was completed in just under one month with local contractors.
Q3: Can this design be adapted for other island nations or terrains?
Yes. We can tailor the building’s dimensions, wind resistance level, roof slope, and cladding systems based on local regulations and environmental data.
Q4: What level of technical support is provided for overseas installation?
We supply detailed CAD drawings, 3D models, a complete parts list, and offer real-time support via video or email for any technical questions during erection.
Q5: Is this steel warehouse suitable for cold storage or agricultural applications?
Absolutely. With proper insulation and internal design adjustments, the structure can be adapted for cold rooms, livestock storage, or any agricultural use requiring controlled environments.
